Bag filter, also known as filter dust collector, is a dry high-efficiency dust collector, it is the use of fiber compilations made of bag filter elements to capture solid particles in the dusty gas dust removal device. Its principle of action is the dust particles around the filter cloth fiber due to inertial force and fiber collision and be intercepted.

 1.Pulse single dust collector

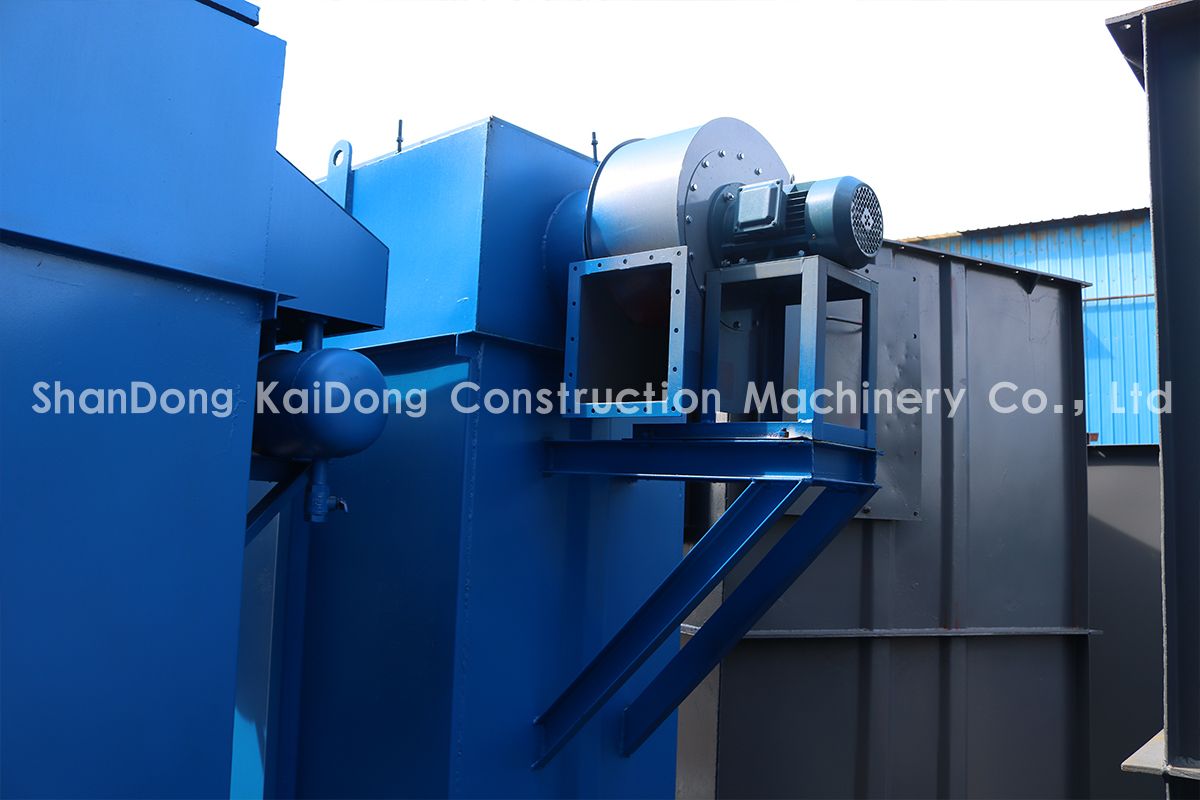

        Stand-alone pulse dust collector, also known as stand-alone dust collector, is a kind of fine design, dexterous model but at the same time have high efficiency and energy-saving a small bag type dust collector, has a large kinetic energy of dust cleaning, high efficiency of dust cleaning characteristics. Stand-alone dust collector consists of dust box, centrifugal fan, filter bag (cartridge), dust collector and microcomputer controller and other parts. The whole dust removal and filtration process is a result of gravity, inertia force, collision, electrostatic adsorption, sieving and filtering and other comprehensive effects. Stand-alone pulse dust collector is specially suitable for independent dust source product points, the use of more flexible and convenient.

HMC stand-alone bag filter technical parameters

Model parameters		HMC-32	HMC-48		HMC-64		HMC-80	HMC-96	HMC-112
Processing air volume（m3·h）		1500-2100	2100-3200		2900-4300		4000-6000	5200-7000	6000-9000
Filter area（m2）		24	36		48		60	72	84
Filtering air velocity（m/min）		1.0—1.5	1.0—1.5		1.0—1.5		1.1—1.7	1.2—1.7	1.2—1.8
Number of filter bags（piece）		32	48		64		80	96	112
Inlet gas temperature（℃）		≤120
Equipment resistance（Pa）		≤1200
Inlet dust concentration（g/m3）		<200
Outlet Dust Concentration（mg/m3）		≤50
Air pressure for ash removal（MPa）		0.4～0.6
Air consumption for dust removal（m3/min）		0.1		0.14		0.2	0.24	0.29	0.34
under pressure（Pa）		5000
Number of pulse valves（个）		4		6		8	10	12	14
Motor power for fan（KW）		1.5		3		3	5.5	5.5	7.5
weights（Kg）	A Model	1350		1620		1850	2360	2800	3200
	B Model	1220		1470		1670	2150	2540	2880

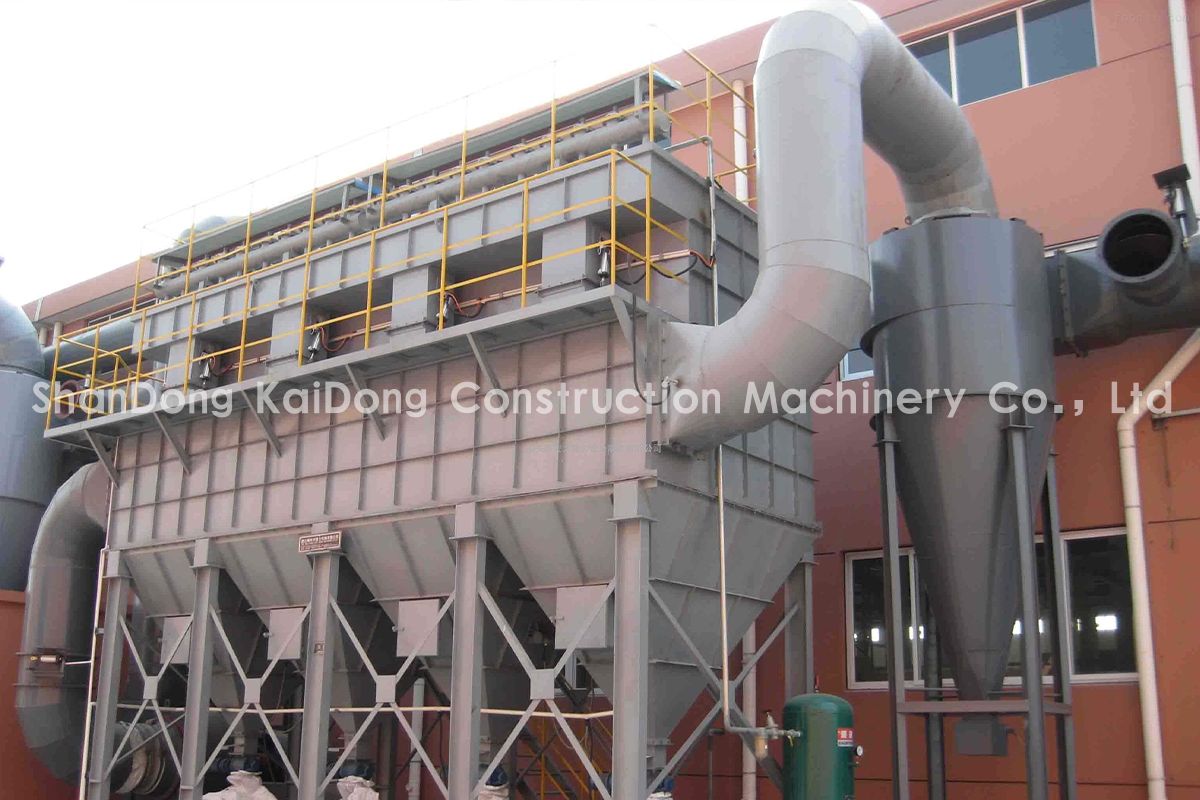

2、Air Box Pulse Bag Dust Collector

       PPC gas box pulse bag filter is a new type of gas box pulse high-efficiency pulse bag filter. It synthesizes the advantages of various types of bag filter with compartmentalized blowback and pulse blowing, overcomes the disadvantages of poor strength of compartmentalized blowback and pulse blowing and filtration at the same time, and expands the scope of application. The product has the characteristics of overall ash cleaning in separate chambers and adopts the form of large-size electromagnetic pulse valve for ash cleaning, which is isolated box by box and carried out in turn. The pulse and ash-cleaning cycle of each chamber is carried out automatically and continuously by the ash-cleaning program controller (PLC) according to the pre-set program, which ensures the effect of compressed air ash-cleaning. It has the characteristics of strong dust-cleaning ability, good effect and long service life. This product is suitable for the management of high concentration dust.



PPC air box pulse bag filter technical parameters table

Model	Processing air volume	Filter bag air velocity	Filter area	Number of filter bags	gas consumption	resistances	dust concentration	Insulation surface area	weights
	(m3/h)	(m/min)	(m2)	(pcs)	(m3/min)	(Pa)	(g/m3)	(m2)	(kg)
32--3	6900	1.2-2.0	93	96	0.27	1470-1770	<1000	26.5	2880
32--4	8930		124	128	0.37			34	4080
32--5	11160		155	160	0.46			41	5280
32--6	13390		186	192	0.55			48.5	6480
64--4	17800		248	256	1.2			70	7280
64--5	22300		310	320	1.5			94	9960
64--6	26700		372	384	1.8			118	11640
64--7	31200		434	448	2.1			142	13320
64--8	35700		496	512	2.4			166	15000
96--4	26800	1.2-2.0	372	384	1.2	1470-1770	<1300	110	10452
96--5	33400		465	480	1.5			120	12120
96--6	40100		557	576	1.8			130	14880
96--7	46800		650	672	2.1			140	16920
96--8	53510		744	768	2.4			150	19810
96--9	60100		836	864	2.7			160	21240
96-2×5	66900		929	960	3			175	25200
96-2×6	80700		1121	1152	3.4			210	30240
96-2×7	94100		1308	1344	4.2			245	35280
96-2×8	107600		1494	1536	4.8			280	40320
96-2×9	121000		168	1728	5.4			315	45360
96-2×10	134500		1868	1920	6			350	50400
128-6	67300	1.2-2.0	935	768	3.6	1470-1770	<1300	125	24120
128-9	100900		1402	1152	5.4			196	31680
128-10	112100		1558	1280	6			2053	34680
128-2×6	34600		1869	1536	7			323	43920
128-2×7	157000		2181	1792	8.3			247	52680
128-2×8	179400		2492	2048	9.5			262	60000
128-2×9	201900		2804	2304	10.7			277	66480
128-2×10	224300		3115	2560	12			292	72000
128-2×11	247600		3427	2816	13.1			307	78480
128-2×12	269100		3728	3072	14.3			322	96400
128-2×13	291600		4050	3328	15.5			337	93600
128-2×14	314000		4361	3584	16.7			352	100800

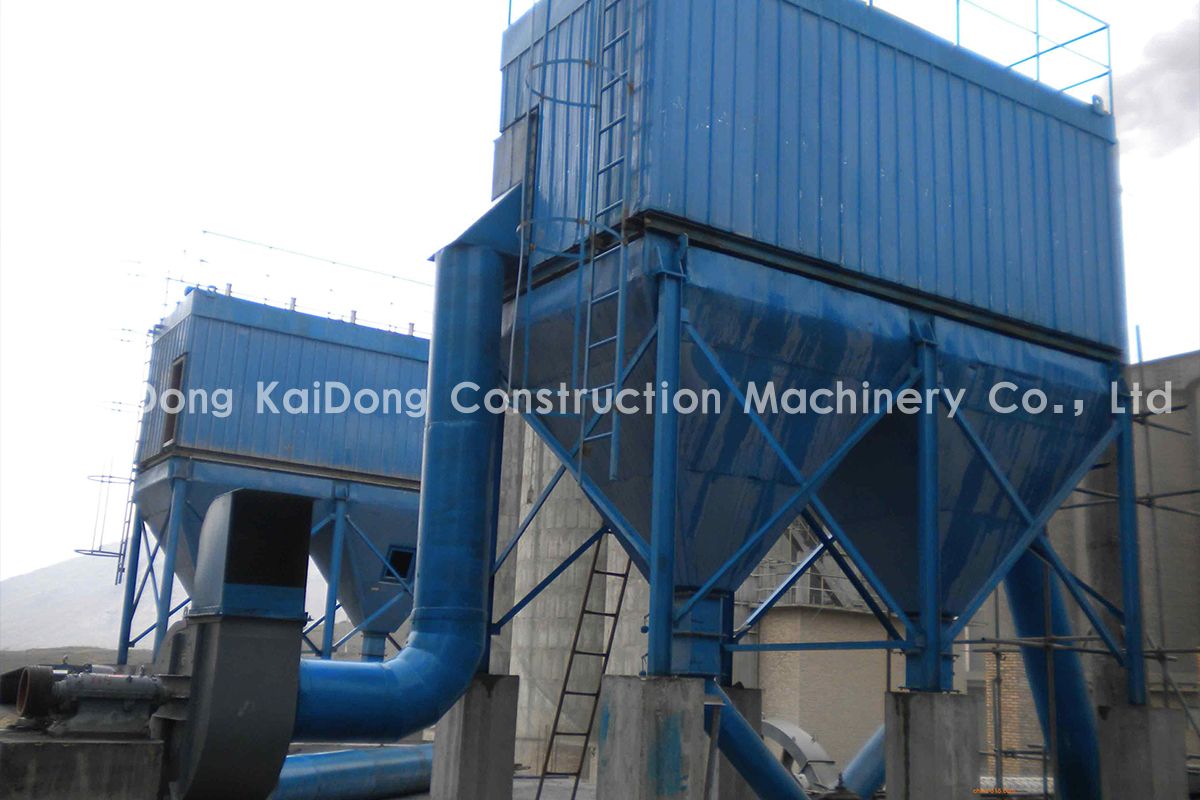

3、Low Pressure Long Bag Pulse Bag Dust Collector

       Low-pressure long-bag pulse bag filter is a new generation of bag filter specially researched and developed for the characteristics of flue gas of various industrial kilns, which overcomes the problems of bad cleaning effect of previous bag filter, easy to burn bags, easy to condensation and unstable operation, and it is the ** of the current bag dust collector. The handling air volume can reach 3000000m 3 /h.

Low-pressure long-bag pulse bag filter technical characteristics:

      (1), long filter bag design, greatly reducing the footprint;

      (2), the dust collector adopts a new side air inlet mode, the airflow distribution is uniform and has the effect of pre-dust removal, which can effectively eliminate the dust "secondary adsorption" phenomenon, improve the dust removal efficiency and reduce the resistance of the equipment;

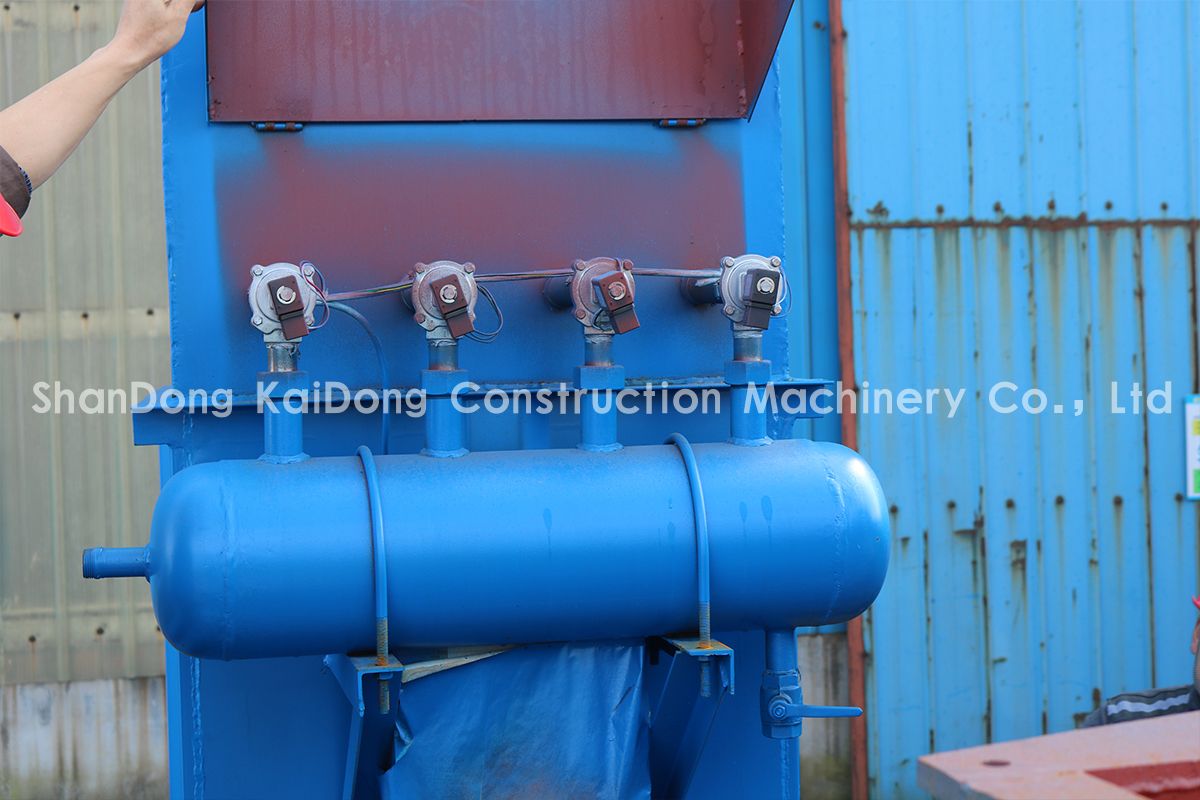

     (3) Pulse blowing valve adopts imported pulse valve. Simple structure, reliable performance, fast response speed, small gas consumption, more effective dust removal;

     (4) The cage bone adopts professional technology to carry out special spraying on the surface, which can effectively prevent the cage bone from rusting and prolong the service life;

     (5) Each dust catcher is divided into several independent filter chambers, when online maintenance is required, the inlet and outlet dampers of any filter chamber can be closed, so that maintenance can be conveniently carried out under the operating condition;

     (6) The bag mouth of the filter bag adopts spring tensioning structure, which is convenient for disassembly and installation and has good sealing.

Low-pressure long-bag pulse bag filter technical parameters table

Model	Processing air volume（m3）	Total filtration area（㎡）	lit. number of rooms（个）	air velocity（m/min）	Filter bag specifications（φ×L）	Cleaning pressure（Mpa）
YLC84-5	61500～73800	1025	5	1～1.2	130*6000	0.3-0.4
YLC 84-6	61200～79344	1230	6
YLC 84-7	77160～92592	1435	7
YLC 84-8	98400～118080	1640	8
YLC 84-2×4	98400～118080	1640	8
YLC 84-2×5	123000～147600	2050	10
YLC 84-2×6	147600～165888	2460	12
YLC 84-2×7	172200～186624	2870	14
YLC 84-2×8	196800～207360	3280	16
YLC 84-2×9	221400～265680	3690	18
YLC 84-2×10	246000～295200	4100	20
YLC 160-2*4	288000～345600	3856	10		160*6000
YLC 160-2*5	288000～345600	4820	10
YLC 160-2*6	345600～414720	5784	12
YLC 160-2*7	403200～483840	6748	14
YLC 160-2*8	460800～552960	7712	16
YLC 224-2*6	486000~583200	8100	12
YLC 224-2*7	567000~680400	9450	14
YLC 224-2*8	648000~777600	10800	16
YLC 224-2*9	729000~874800	12150	18
YLC 224-2*10	810000~972000	13500	20
YLC 224-2*11	891000~1069200	14850	22
MPD224-2*12	972000~1166400	16200	24
